In modern construction, HVAC systems, industrial boilers, and insulated panels, attaching insulation reliably and durably is critical. Traditional mechanical fasteners (clips, bolts, adhesives) often bring drawbacks: extra labour, thermal bridging, drilling damage, or long-term maintenance. Insulation pin welding offers a clean, fast, and secure alternative, and when paired with a well-matched pin welding machine, the results can outperform conventional methods.
At Taylor Studwelding, our range of stud welding machines is ideally suited for insulation pin welding. Our equipment combines speed, repeatability, and weld integrity. In this article, we explore how insulation pin welding works, what features matter in a pin welding machine, and why Taylor’s equipment is a top choice for this application.
What Is Insulation Pin Welding?
Definition & Purpose

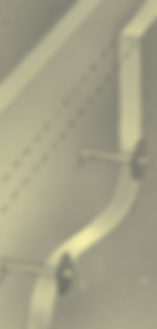

Insulation pin welding (sometimes called pin welding or insulation stud welding) refers to welding small diameter pins or studs (often in the form of cup-headed pins, mini-cupped heads, or standard “pins”) directly onto a metal substrate to act as attachment points for insulation materials. The insulation is then impaled on the pins or clipped over them, often with washers or covers to prevent tearing.
This process enables a mechanical bond without the need for penetrating holes, adhesives, or discrete fasteners, and maintains thermal continuity more effectively.
Process Overview
Depending on the machine type (capacitor discharge or drawn-arc depending on the base material / thickness), the welding process generally involves:
Charging a capacitor or establishing a welding current
Placing the pin against the base metal
Triggering the discharge which melts both pin tip and the substrate surface
Forcing the molten materials together to form metallurgical fusion
Cooling solidifies the weld, securing the pin to the substrate
Insulation pin welding is widely applied in areas like HVAC ducts, boiler insulation, ship hull insulation, industrial flue systems, and insulated wall panels.
Key Benefits of Insulation Pin Welding
Rapid installation vs conventional mechanical or adhesive methods
Clean process with no drilling, minimal heat-affected zone
Strong bond with good fatigue resistance
Lower labour and material handling costs
Flexibility over curved or uneven surfaces
By welding insulation pins or studs directly onto metal, insulation blankets and wraps can be firmly attached without drilling or adhesives, reducing labour and increasing durability.
Choosing the Right Pin Welding Machine
Successful insulation pin welding depends heavily on using the correct pin welding machine (or stud welding machine configured for pins). Some of the important considerations:
Pin diameter / material compatibility — many insulation pins are small (e.g. 2 mm to perhaps 5mm), so the machine must support that size and handle the thermal profile carefully
Energy control & repeatability — precise, repeatable energy pulses are key to avoid burn-through or failed welds on Drawn Arc pins
Cycle speed / throughput — high productivity demands the machine be able to weld multiple pins per minute reliably
Duty cycle & cooling — the equipment must handle continuous operation without overheating
Ease of adjustment & operator ergonomics — quick settings, intuitive control, minimal fatigue
Surface tolerance — ability to tolerate slight surface imperfections, coatings, or curvature
Integration / automation compatibility — for production lines, semi-automated or robotic integration is often a requirement
Capacitor Discharge stud welders are usually the preferred machine type for thin base materials. Drawn Arc stud welding equipment is used where heavy duty applications are required.
How Taylor Studwelding Machines Excel for Insulation Pin Welding
At Taylor Studwelding, we design machines with both power and precision in mind. Below are aspects where our offerings stand out for insulation pin welding applications:
Key Features & Advantages
Fine energy control & repeatability
Our capacitor discharge (CD) systems allow fine tuning of discharge voltage and timing to match pin size and substrate. This ensures consistent welds with minimal defects.
Support for small pins & specialist pins
Taylor Studwelding’s product catalogue includes insulation pins among the specialist weld studs supplied. Our machines, chucks, collets and accessories are all designed to match insulation pin geometries and sizes.
Compact, robust, ergonomic design
Our stud welding equipment is engineered for operator usability - lightweight handguns, easy setup and maintenance. This reduces fatigue during repetitive pin welding jobs.
High throughput & duty cycle
Our machines are built to sustain continuous cycling with proper cooling and power handling. For large insulation jobs this is vital to maintain productivity.
Material versatility
Taylor’s systems can weld a variety of substrates (mild steel, stainless, aluminium alloys) and pin materials (steel, stainless, etc.), meaning flexibility across different applications.
Accessory support & consumables availability
Since Taylor Studwelding also stocks over 1 million components including, weld studs, collets, chucks, and accessory parts, customers benefit from integrated supply and support.
Relevant Models & Specifications
One product line which is in high demand for insulation pin or stud applications is the CDI8 and CDI9 series. The CDI8 is a compact and portable capacitor discharge stud welder which is suitable for insulation pins or studs up to 8 mm dia. These units are lightweight and have power versatility that favours working at on site locations.

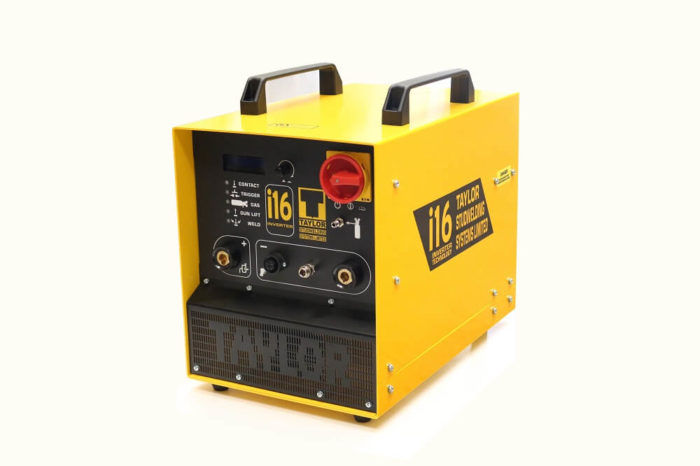

While the CDI8 is well suited to small/medium pin work, for higher duty cycles or larger insulation applications, other models in Taylor Studwelding’s range may be more appropriate. Our Drawn Arc machines are more oriented to heavy duty stud welding which can be useful for pin welding onto thicker base materials or challenging surface conditions (such as rust or curvature). Enquire with our helpful and knowledgeable team to discuss the most appropriate machine for your specific requirements.
Application Examples & Use Cases
Insulation is used in a wide variety of industries. Stud welding is a common attachment process for insulation installation in the following fields:
HVAC duct insulation
Industrial boiler insulation
Ship or marine vessel insulation
Insulated panel systems in construction
Noise and acoustic liners
Find out more about stud welding use cases.
Best Practices, Tips & Quality Control
To get consistent, high-quality results with Taylor Stud welding equipment, here are a few handy tips to consider:
Surface preparation: ensure the substrate is clean, free of heavy scale, paint or heavy oxidation. Light coatings may be tolerated depending on machine settings.
Pin selection: use the correct diameter, head form (cupped, mini-cup, flatter head) and material (matching substrate when possible)
Power setting & calibration: always run test welds and adjust voltage or timing to get good fusion without burn-through
Cooling & duty cycles: avoid overheating by allowing cooling in heavy use, especially in hot environments
Operator technique: maintain consistent contact, perpendicular alignment, consistent trigger timing
Quality inspection: employ non-destructive testing (e.g. pull tests), visual inspection of weld fillet, check for mis-welds. Remember pins can also be bent non-destructively, as they are made from more ductile material than standard weld studs.
Routine maintenance: regularly inspect cables, chucks, collets, grounding connections, clean contacts
Why Choose Taylor Studwelding for Insulation Pin Welding
For over 40 years, Taylor Studwelding has been at the forefront of stud and pin welding technology. Our machines are trusted across the construction, automotive, and shipbuilding industries for their precision, performance, and durability.
Choosing Taylor Studwelding means more than just purchasing equipment - it is investing in reliability and expertise. Our machines are designed and built in the UK, supported by a dedicated team of engineers, service technicians and a global distribution network.
We also provide full training, maintenance support, and consumable supply, ensuring your insulation pin welding operation runs smoothly from day one.
Talk to Our Team
Insulation pin welding is a powerful, modern technique to attach insulation reliably, cleanly, and at high speed. But the right pin welding machine is essential.
Ready to improve your insulation welding process?
Contact our team today to discuss your requirements or request a demonstration.
